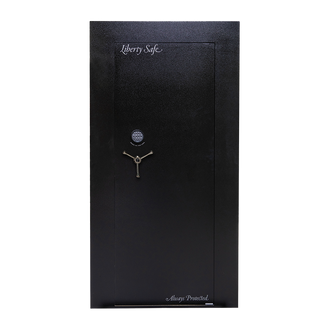

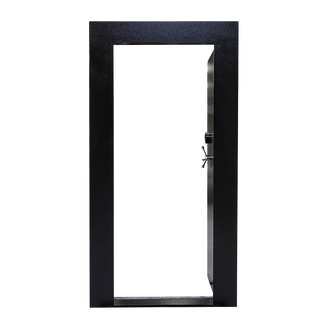

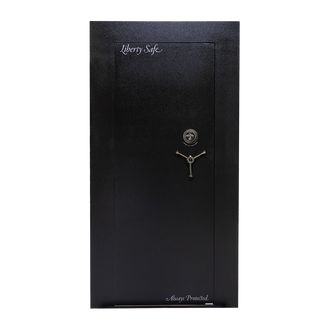

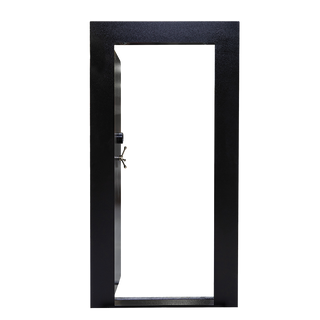

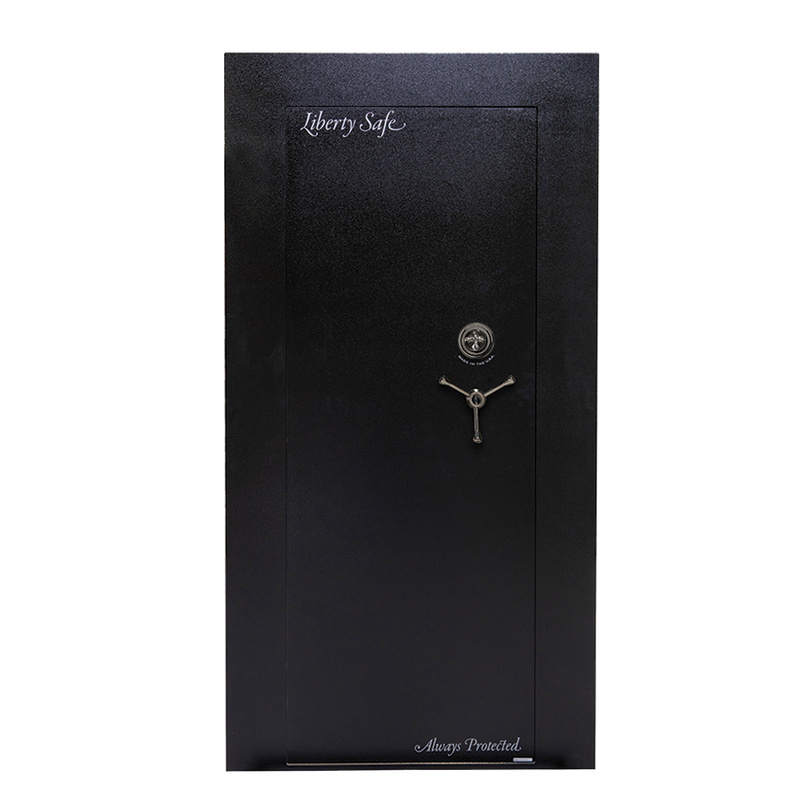

Frame 86 x 45.5" | Security Level 5 | 655 lbs.
Frame dimensions: 86 x 45.5"
Door Dimensions: 78.5 x 29.5"
Rough Opening Requirements:
For Clamshell Installation: 82 - 85"H x 38 - 42"W x 7 - 9"D
For Bolt-in Installation: 82 - 85"H x 38 - 42"W x 5"D or greater
Weight: 655 lbs.
Swing Options: Left swing or right swing available
Security level: 5 Learn more
Steel Frame Thickness: 1/4"
Door: 1/4" Steel Plate
Locking Bolt Count: 6
Locking Bolt Thickness: 1/4"
Additional Security Features:
Internal Lock-out Mechanism: Designed to lock and unlock from the inside of the vault. You can get out but they can't get in.
UL listed SecuRam Toplit Lock, standard at no additional charge.
Slip-clutch gear mechanism, designed to protect against forced entry.
Dual relocker system that hard locks the door in place in the event of attempted brute force entry.
Features Liberty's exclusive, ultra-strong military locking bar system. Great protection against pry attacks.
*Measurements: Measurements and dimensions are + or – 1/8” to all measurements for manufacturing variance.
*Gun Count: Gun capacity may vary depending upon the size of guns and scopes.
T&T Liberty Safes reserved the right to change or update product specifications, colors and model sizes at any time.
Shipping and installation fees vary depending on many variables. Please call for quote on delivery or installation for vault doors.
