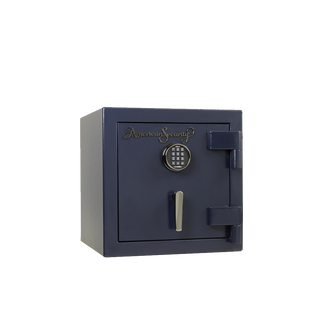

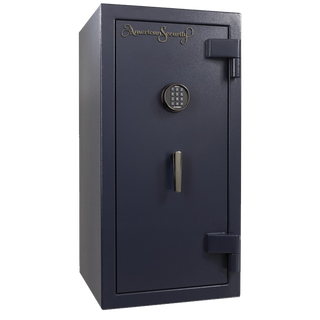

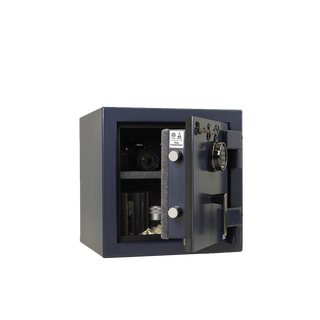

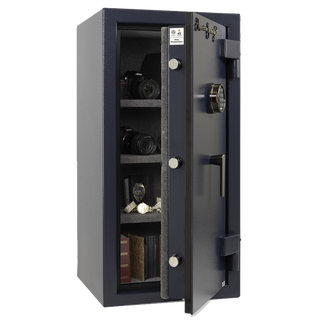

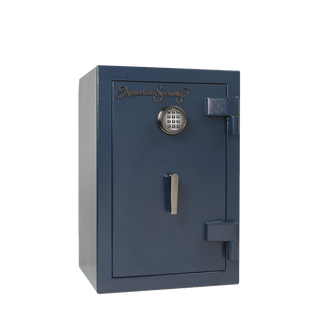

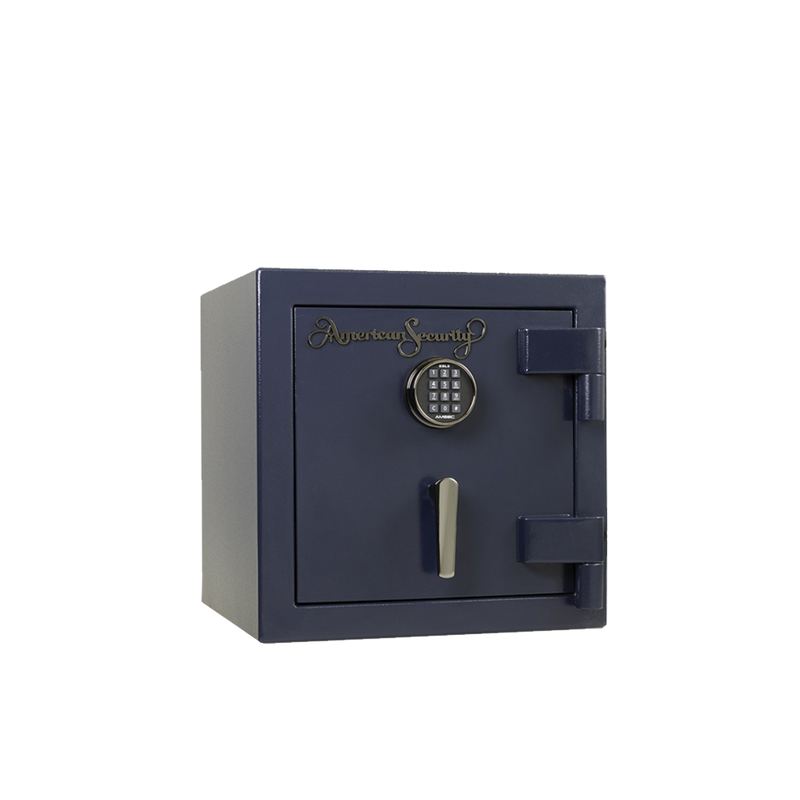

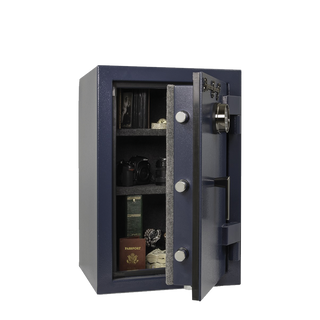

AMSEC AM Series | 12 Gauge Steel | 45 Minute Fire Protection
The American Security (AMSEC) AM series offers reliable security and fire protection for home valuables. These safes are constructed with a heavy-duty 1/4" solid steel plate door and a 12-gauge steel body, designed to resist pry and sledgehammer attacks. All safes in the series feature an ETL-verified 45-minute fire rating at 1200°F, ensuring the interior temperature remains below 350°F to protect contents from heat damage. Equipped with a backlit U.L. Listed electronic lock and a gray fabric interior, the AM series provides both secure access and a protective environment for the things that matter.
Specifications (all models):
- 12 gauge steel body
- 45 min. Fire Rating
- Drywall lined
- Backlit UL listed ESL5 Electronic Lock included
- Powder-Coated Blue with Black Nickel Hardware
- Gray fabric interior
* You will choose installation options at checkout. To learn more about our Delivery and Installation options, click here.
| 2020 | 3020 | 4020 | |
| Weight | 180 |
230 | 282 |
| Exterior Dimensions H x W x D | 20 x 20 x 20" | 30 x 20 x 20" | 40 x 20 x 20" |
| Interior Dimensions H x W x D | 17 x 18.25 x 14.5" | 27 x 18.25 x 14.5" | 37 x 18.25 x 14.5" |
| Exterior Cubic Inches | 4710 |
7402 | 10,094 |
| Interior Shelves |
1 | 2 | 3 |
Please Note:
*Measurements: Measurements and dimensions are + or – 1/8” to all measurements for manufacturing variance. Dimensions listed are for the safe footprint and are rounded up to the nearest quarter inch. To be sure depth of the safe will fit in your space, add a total of 5” to the total depth (2” for the plug in back, 3” for the handle in front).
*Gun Count: Gun capacity may vary depending upon the size of guns and scopes.
T&T Liberty Safes reserved the right to change or update product specifications, colors and model sizes at any time.
